Automatic Saw Blade Grinder
With our expertise in the concerned field, we are engaged in offering a wide array of Grinding Machinery, Lathes Machinery and Tool & Cutter Machinery that are widely used in various industries for different purposes. These are manufactured using the best quality factor inputs in order to meet the international quality standards. Further, these are available in various sizes, capacity and dimensions, and can be customized as per our clients’ specifications.
We Offer:

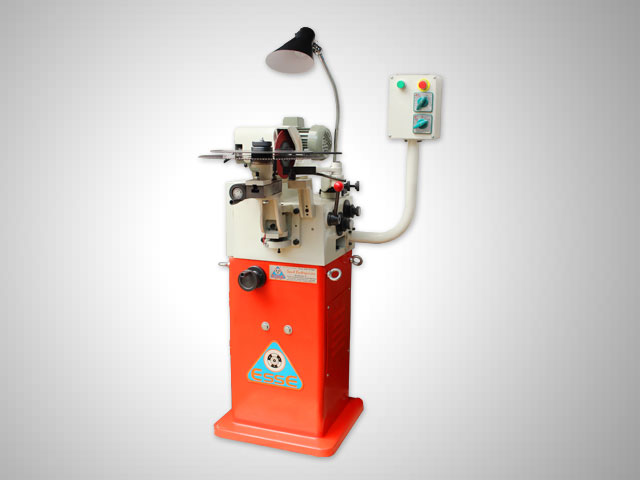

SBG-450 Circular Saw Blase Grinding Machine can sharp the circular saw blade (dia. 50-450mm, thickness 8mm) and other cutting tools, you can also buy the grinding wheel according to the material of your blade. The grinding wheel is subject to the national standard, so you can buy it in the market, if the dia of your blade is less then 50mm, we can make special holder for it.
Make an EnquirySaw Blade outer diameter (Grinding Capacity) | Ø 50 ~ Ø450mm |
Teeth (Max) | Max .25mm |
Depth Of Theeth | Max .8mm |
Cutting Angle | 0° ~ 30° |
Feeding Speed | 45 ~ 180 teeth/min |
Grinding Wheel Diameter | 70 ~ 150mm |
The Speed of Grinding Wheel | 4200repm |
Drive Motor | 1/2Hp |
Net Weight | 135kg |
Packing Size LxWxH (cm) | 1250x750x750mm |
