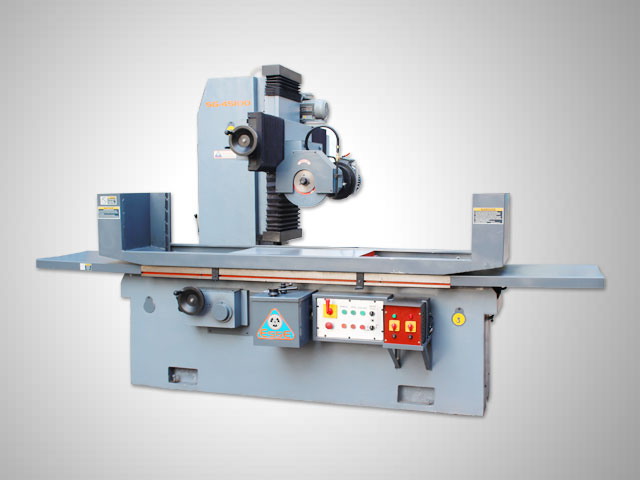

Hydraulic Surface Grinder Over Arm type
With our expertise in the concerned field, we are engaged in offering a wide array of Grinding Machinery, Lathes Machinery and Tool & Cutter Machinery that are widely used in various industries for different purposes. These are manufactured using the best quality factor inputs in order to meet the international quality standards. Further, these are available in various sizes, capacity and dimensions, and can be customized as per our clients’ specifications.
We Offer:
The Surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
Longitudinal table ways are designed to have slide surfaces longer than of the working surface and equal to the table length to keep the table free from torsion and deflection.
Make an Enquiry
| Specifications / Models | SG-40100 | SG-45100 | SG-50100 | |
|---|---|---|---|---|
| General Capacity | Working Surface | 400 x 1000 | 450 x 1000 | 500 x 1000 |
| Longitudinal Traverse (max.) | 1000 | |||
| No. of T Slots | 2 | |||
| Cross Feed | Total Cross Traverse | 450 | 500 | 575 |
| Movement Per Rev. of Hand Wheel | 0.05 | |||
| Vertical Movement | Hand Feed Per Revolution | 1mm | ||
| Hand Feed Per Division | 0.01mm | |||
| Wheel Head | Speed of Grinding wheel ( Ø X with X Bore) | 300/25/75mm | 355/38/127mm | |
| Speed of Grinding wheel | 2880 | 1500/1800 | ||
| Capacity Between Wheel & Table (New Wheel) | 400 | |||
| Electrical | Wheel Head Motor | 3 H.P. | 5 H.P. | |
| Hydraulic Motor | 3 H.P. | 5 H.P. | ||
| Coolant Pump | 0.12 K.W | |||
| Cross Feed (For Hydraulic) | 0.5 - 1 H.P | |||
| Longitudinal Slideways | Cross Slideways | Longitudinal Movement | Cross Movement | Vertical Downfeed |
|---|---|---|---|---|
| One Vee Flat Fee | Flat Doveail Type Gibbed Ways | Hydrulic | Automatic | Rapid Up/Down |
